SKU: 11-236-4

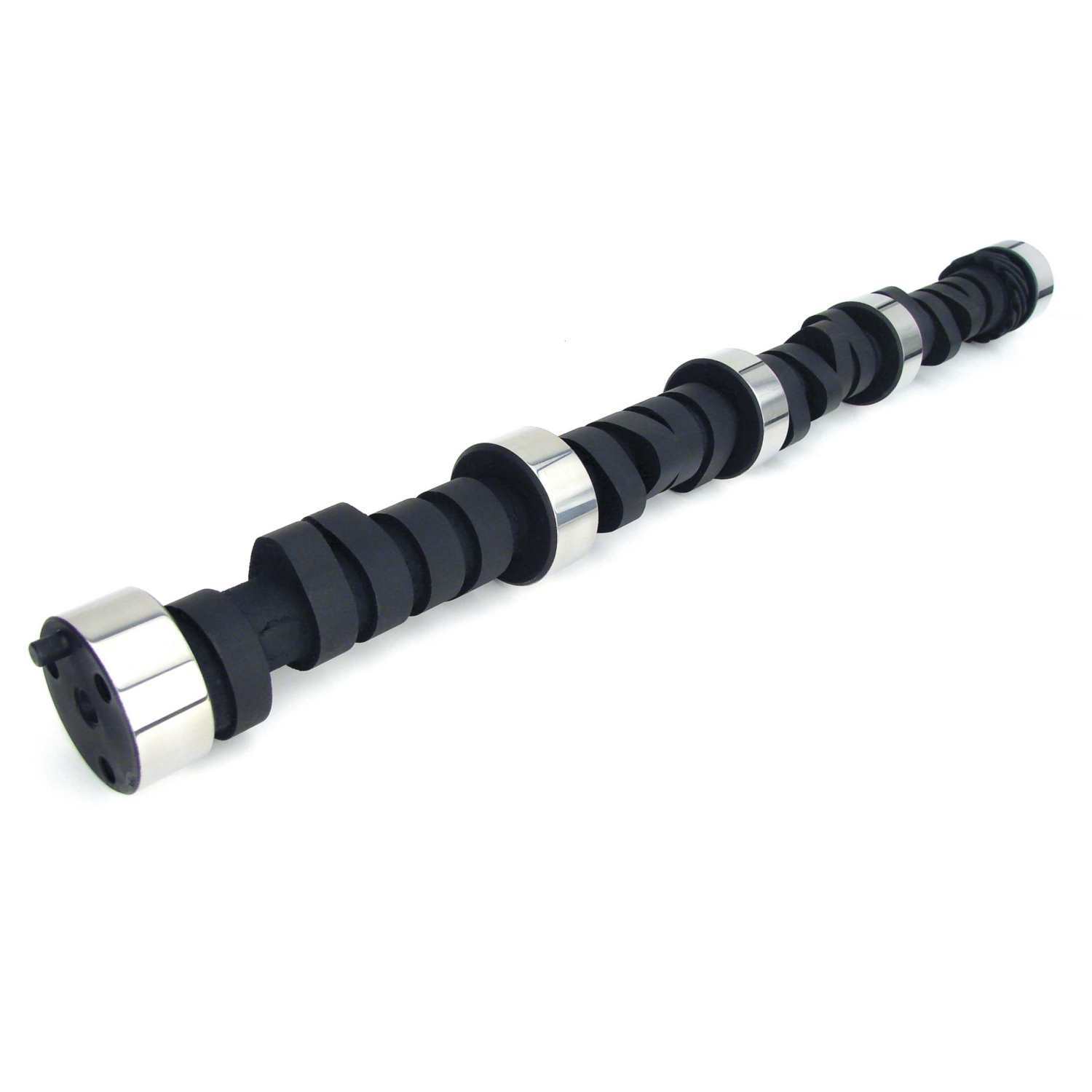

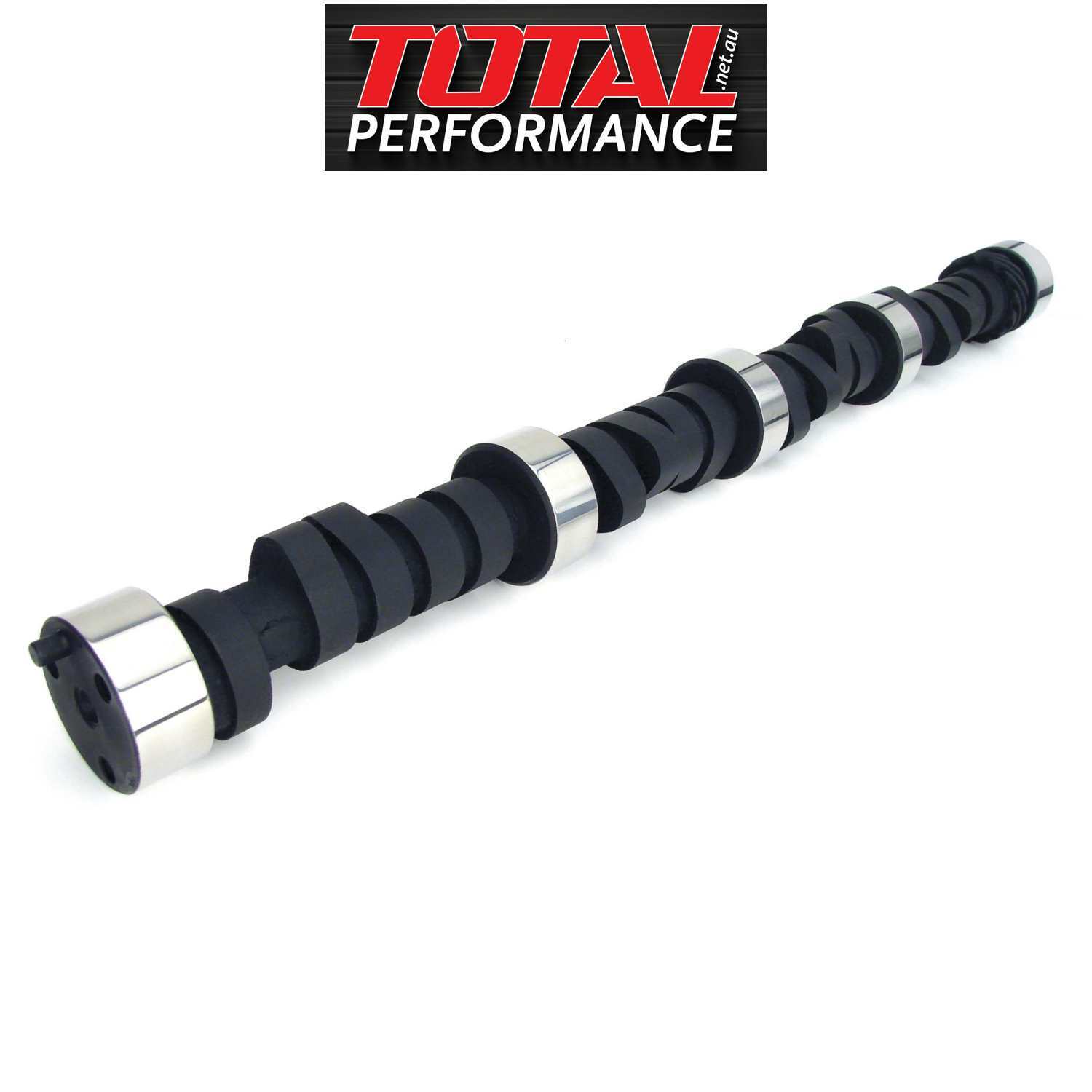

11-236-4 Xtreme Marine 226/236 Hydraulic Flat Cam for Chevrolet Big Block 396-454

$517.11

or 4 payments of $129.28 with Info

SOLD OUT

Description

Jet w/ A impeller, strong mid- range, good throttle response, noticeable idle.

Specifications

SKU 11-236-4
Barcode # 036584038481
Brand COMP CAMS
intake valve lift 0.544
Exhaust Valve Lift 0.547
Lifter Type Hydraulic Flat Tappet
Advertised Exhaust Duration 286
Advertised Intake Duration 270
Cam Type Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift 236
Intake Duration At .050 Inch Lift 226
Lobe Separation 112
Camshaft Series Xtreme Marine
Grind Number XM270H
Basic Operating Rpm Range 1,600-5,800
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Cast Iron
