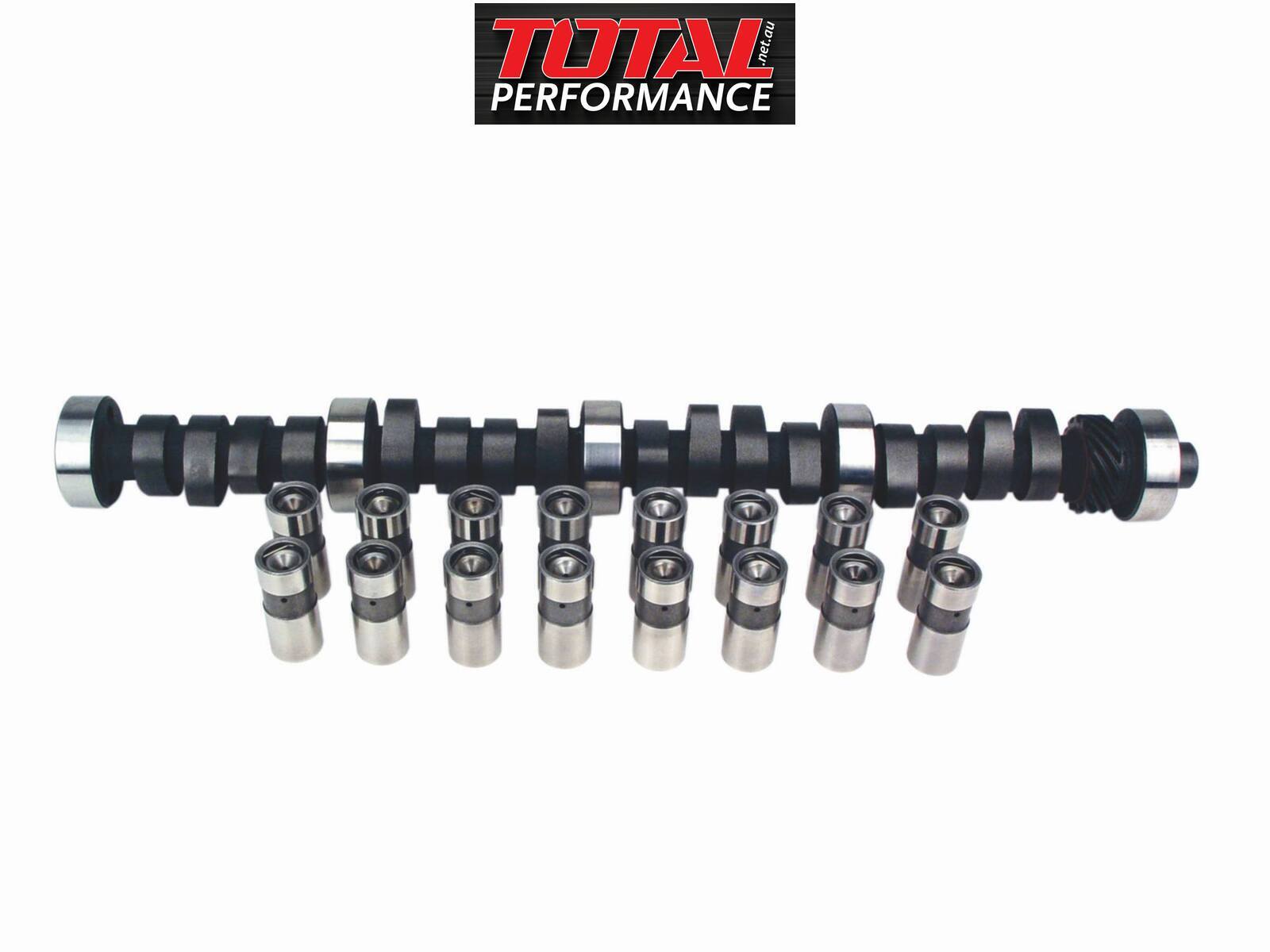

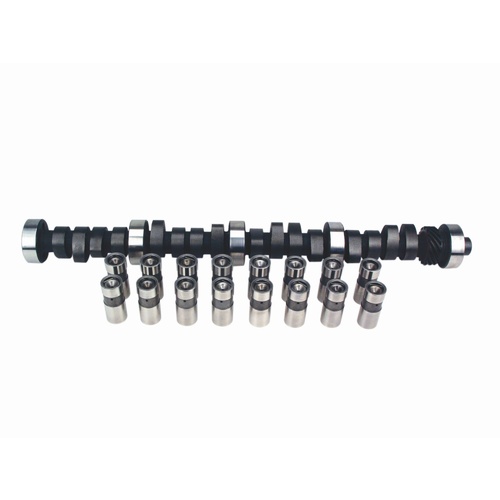

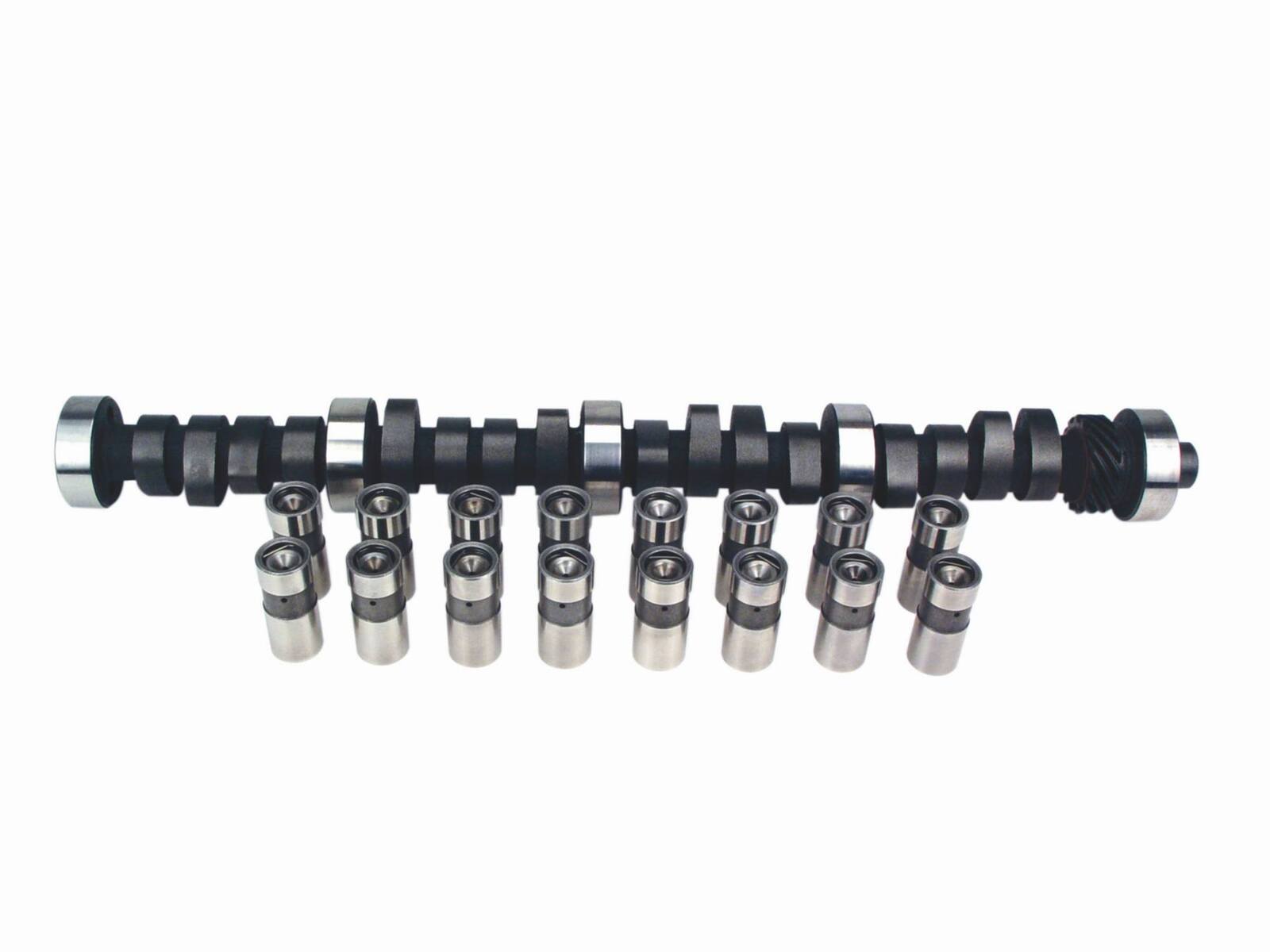

Magnum 224/224 Hydraulic Flat Tappet Camshaft & Lifters Kit for Ford 289 302W Windsor Small Block Ford SBF
RPM Range; 1800-5800 Cam & Lifter Kit
Description
Comp Cams Ford 289 302 Windsor 224/224 Hydraulic Flat Tappet Camshaft& Lifters Kit
Performance use. Best with mild converter, headers, 9:1 compression and lower gears. Rough idle.
Whats in the Kit: Camshaft 31-414-3 & Comp Cams Lifters
Engine Family Ford 221, 260, 289, 302 c.i. 8 Cylinder (1963-1995) Small Block Ford Windsor.
RPM Operating Range 1,800-5,800
Cam Type Hydraulic Flat Tappet
Camshaft Series Magnum
Usage Performance Street/Strip
Advertised Intake Duration 270
Advertised Exhaust Duration 270
Intake Duration at .050 Inch Lift 224
Exhaust Duration at .050 Inch Lift 224
Intake Valve Lift 0.5
Exhaust Valve Lift 0.5
Lobe Lift Intake 0.313
Lobe Lift Exhaust 0.313
Lobe Separation 110
Intake Centerline 106
Valve Timing Lift 0.006
Exhaust Close ATDC 21
Intake Open BTDC 29
Exhaust Open BBDC 69
Intake Close ABDC 61
Lifter Style Hydraulic Flat Tappet
Total Performance recommends the High Zinc Oil additive Comp Cams part 159-1
Specifications
| SKU | CL31-414-3 |
| Barcode # | 036584450733 |
| Brand | COMP CAMS |
| Camshaft Series | Magnum |
| Locks Included | No |
| Retainers Included | No |
| Valve Stem Seals Included | No |
| Timing Chain And Gears Included | No |
| Camshaft Material | Cast Iron |
| Camshaft Gear Attachment | 1-Bolt |
| Valve Springs Required | Yes |
| Lifters Included | Yes |
| Basic Operating Rpm Range | 1,800-5,800 |
| Gaskets Included | No |
| Lobe Separation | 110 |
| Intake Duration At .050 Inch Lift | 224 |
| Exhaust Duration At .050 Inch Lift | 224 |
| Cam Type | Hydraulic Flat Tappet |
| Advertised Intake Duration | 270 |
| Advertised Exhaust Duration | 270 |
| Lifter Type | Hydraulic Flat Tappet |
| Exhaust Valve Lift | 0.5 |
| intake valve lift | 0.5 |
