SKU: 26527-16

.700" Max Lift LS Dual Valve Springs High RPM 159lbs@1.900" 427lbs. GM LS7, LT1 & LT4 Engines & 351C, BBC Hydraulic Roller.

$898.11

or 4 payments of $224.53 with Info

IN STOCK  FREE SHIPPING

Description

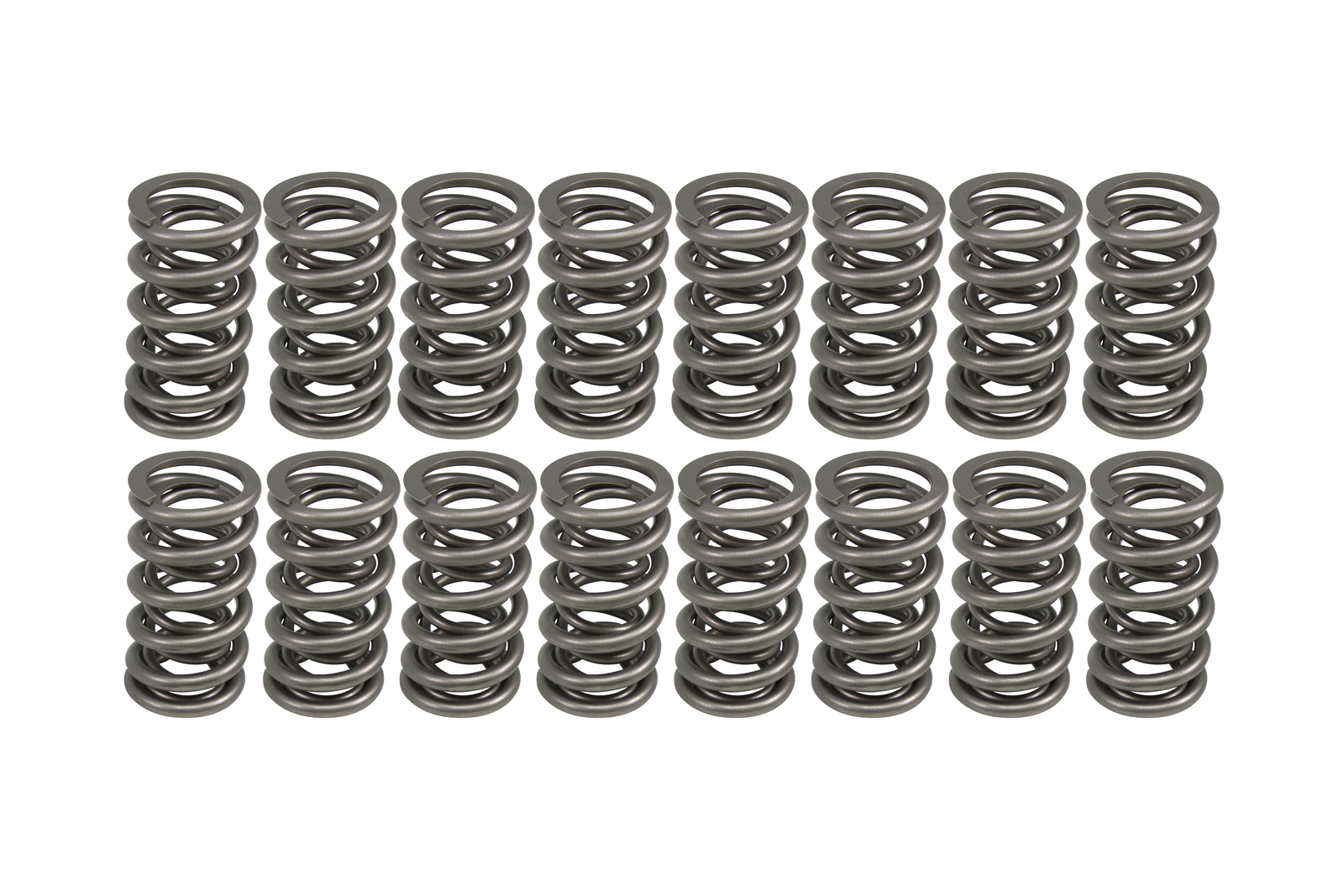

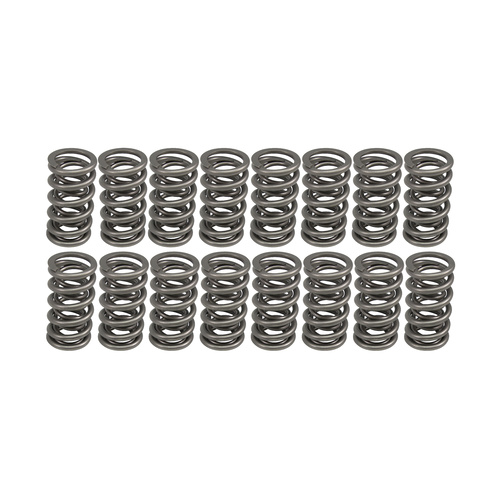

Comp Cams Premium Dual Valve Springs. Hydraulic Roller

Can be used on the LS7, 351c Cleveland and BBC 454 Hydraulic Rollers.

  • Part#                26527-16
  • OD:                  1.301"
  • ID inner:           0.646"
  • Seat Load:       159@1.900
  • Open Load      458@ 1.200"  (0.600" lift)
  • Spring Rate:    427 lbs/in
  • Coil bind:         1.150"
  • Max lift:            0.700"  (with 050" safety)

Specifications

SKU 26527-16
Barcode # 036584384779
Brand COMP CAMS
Damper No
Seat Pressure 159
Outer Spring Outside Diameter 1.301
Outer Spring Inside Diameter 0.924
Number Of Springs 2
Inner Spring Inside Diameter 0.646
Valve Spring Series Dual
Coil Bind Height 1.15
Spring Rate 427
Spring Style Dual
Open Load 458
Installed Height 1.9
