SKU: 26925CS-KIT

26925CS-KIT GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers; .660" Max Lift

$827.68

or 4 payments of $206.92 with Info

SOLD OUT

Description

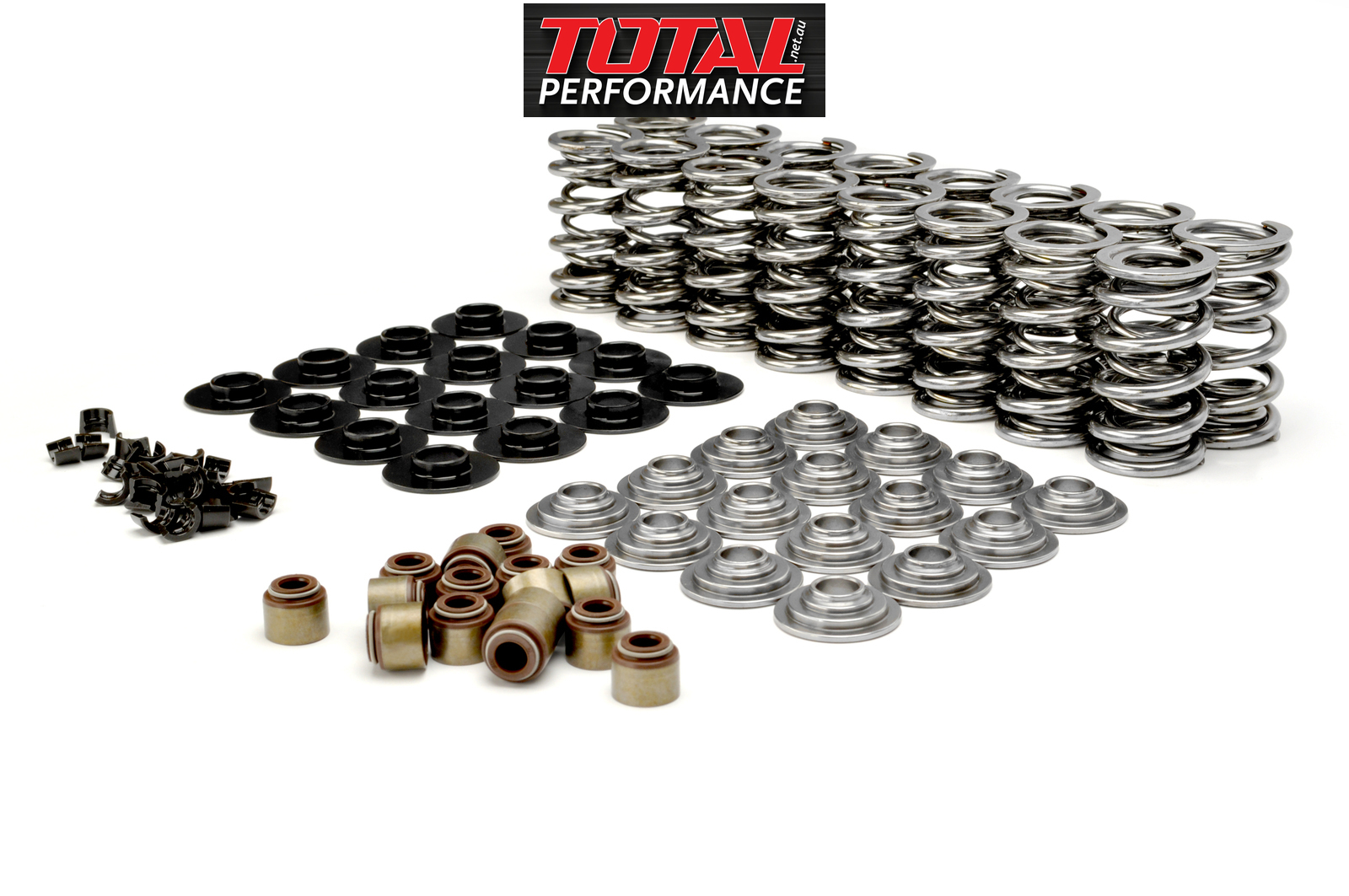

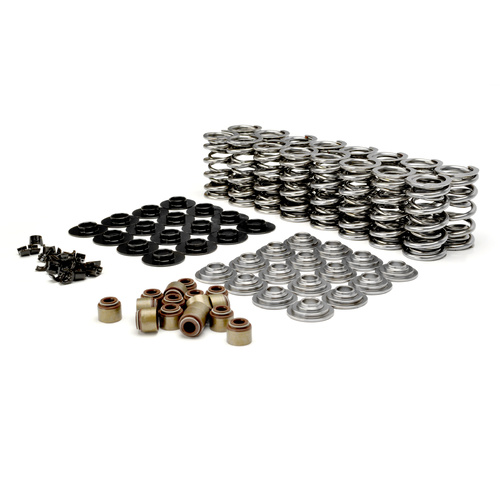

Including properly matched quality dual valve springs, 7 degree locks, viton seals, hardened seats and chromemoly steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .660" valve lift.

Specifications

SKU 26925CS-KIT
Barcode # 036584395010
Brand COMP CAMS
Coil Bind Height 1.070
Includes Seats? Yes
Spring Seat Type I.D. Locator
Includes Retainers? Yes
Included Seats 4695-16
Max Lift 0.660
Installed Height 1.810
Open Load 405
Spring Style Dual
Spring Rate 400
Includes Shims? No
Valve Spring Series Dual
Inner Spring Inside Diameter 0.680
Number Of Springs 2
Outer Spring Inside Diameter 0.958
Outer Spring Outside Diameter 1.320
Seat Pressure 141
Damper No
Retainer Material Chromemoly Steel
